OI-316
| Box Width | 76.5″ |
| Overall Width | 98.5″ |
| Overall Width Setup | 119.5″ |
| Box Length | 192˝ |
| Overall Length | 254″ |
| Overall Length Setup | 267″ |
| Interior Height | 82.5″ |
| Overall Height | 131.5″ |
| Curb Weight | 4,820 lbs. |
| Tongue Weight | 840 lbs. |
| Fresh Tank Capacity | 150 gal. |
| Holding Tank Capacity | 530 gal. |
| GVWR | 7,000 lbs. |
Interior Standard Features
- Smooth durable fiberglass interior on composite backer (no wood)
- 12 Volt LED lighting – (2) lights per room
- Lockable base cabinets

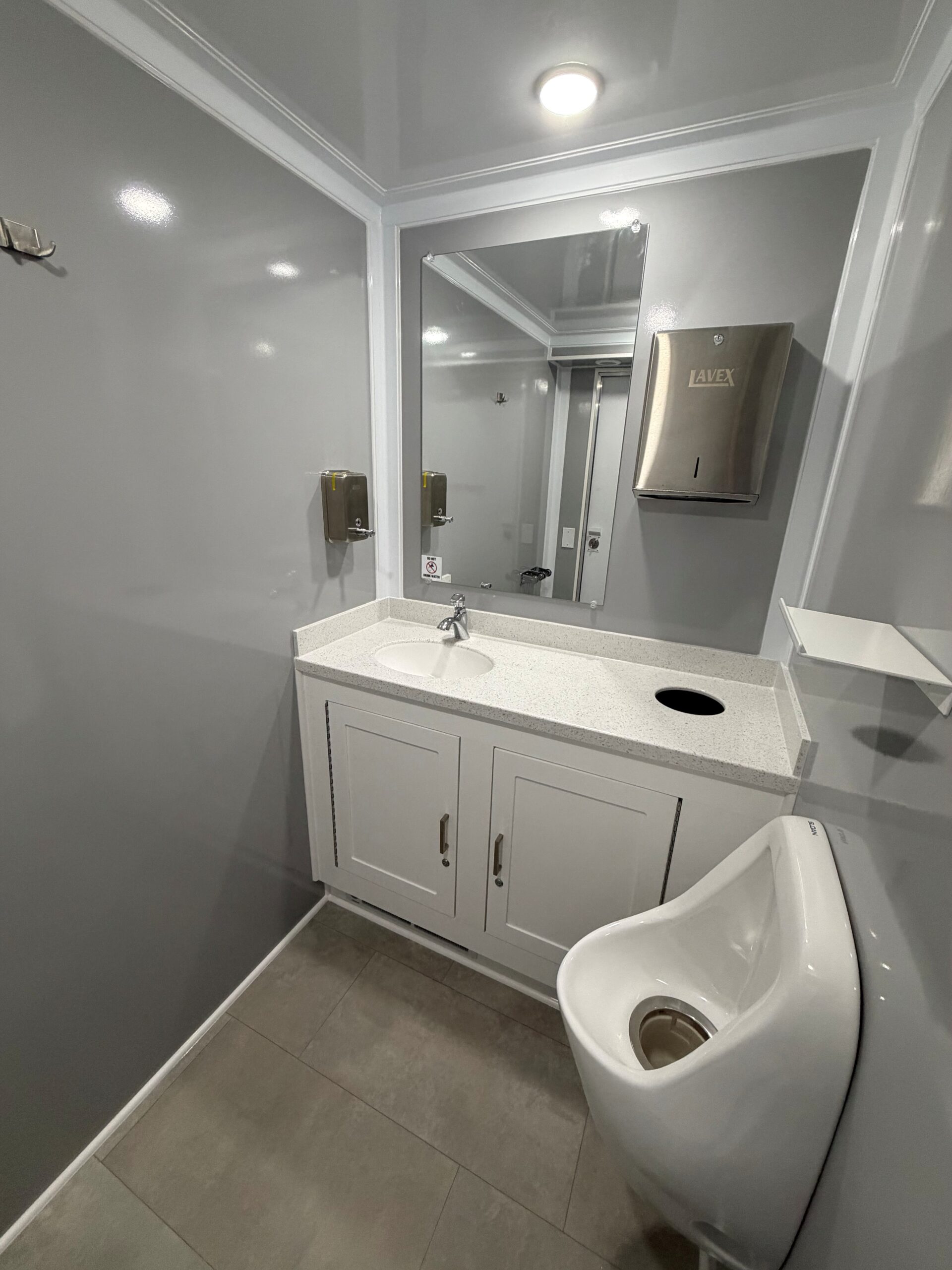

- Solid surface countertops with molded sinks
- Waste basket cut outs and waste baskets
- Self closing commercial faucets
- Soap, paper towel, & toilet paper dispensers
- Coat hooks
- Ultra low water use ceramic bowl pedal flush toilets

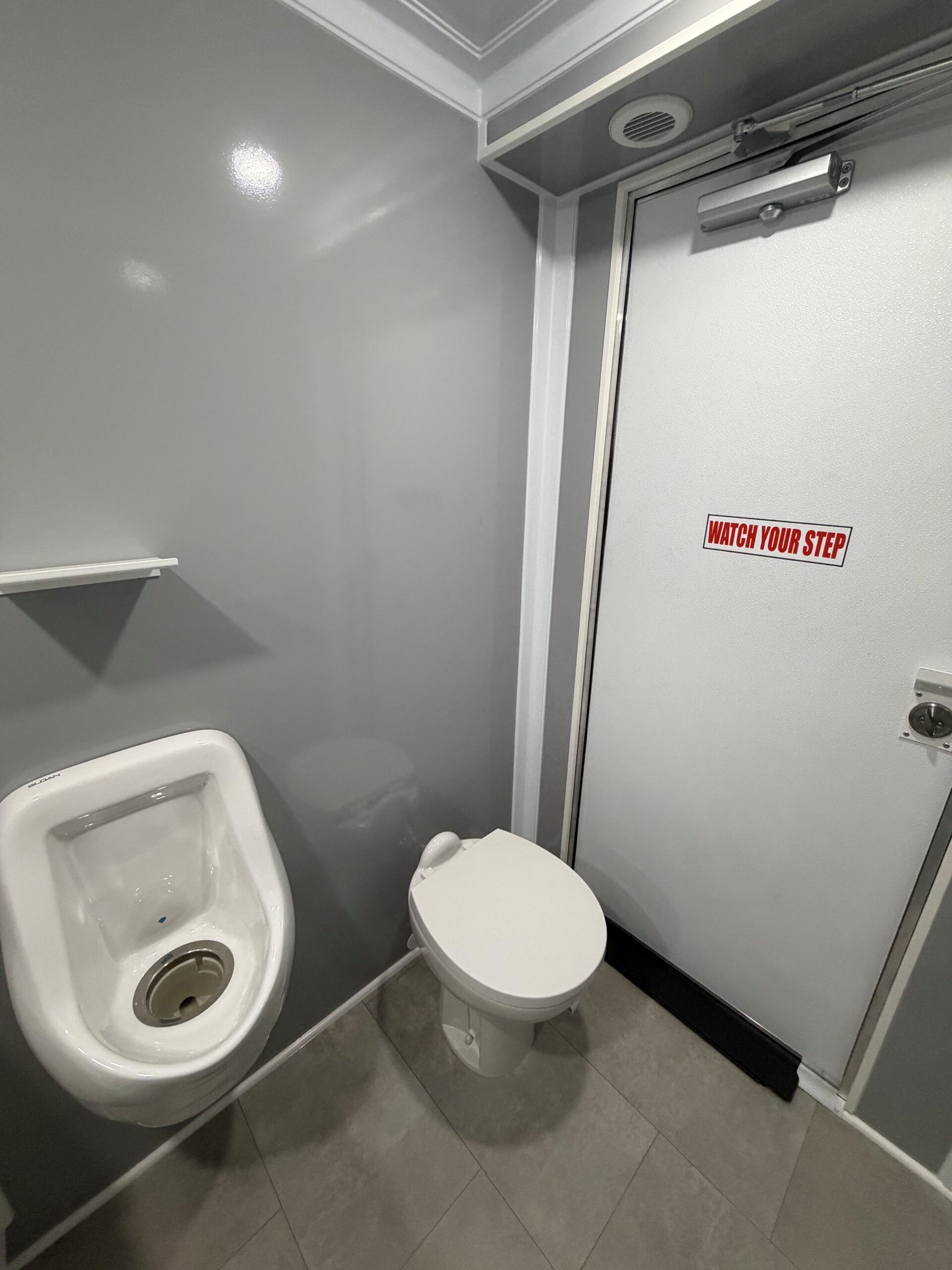

- Waterfree urinal (men’s restroom only)
- Sanitary Napkin receptacles (women’s restrooms only)
- Shatterproof mirrors
- Heavy duty door closers
- 1 Piece transit grade flooring on non-absorbent “Ever Floor”
- Climate control sensor inside restroom
Exterior Standard Features
- Large 32″ heavy duty entrance doors
- Occupancy lighting
- 1 Piece roof
- Smooth durable fiberglass exterior on composite backer
- Porch lights at all entry doors w/ switch in control room
- Fold down steps with swing-out grab handles
- 3″ quick connect waste tank access valve
- LED waste tank indicator
- 1/2″ co-poly waste tanks
- Large access door in rear for 1″ wash out plug
- City water connection
- 30 amp marine-style power cord
- Roof mounted Air Conditioner w/ heat strip
- Climate control center mounted in control room
- External Spray Port with 30′ hose and nozzle
- Insulated walls and ceiling
- Single 7,000 lb. torsion axle
- Alum wheels with F-rated trailer specific tires nitro-filled
- Matching spare tire with mount
- Full license plate frame with light & screws
- Fresh water fill/diverter (either hydrates the unit or fills the fresh tank)
- Courtesy light above Control Room door
- Powder coated aluminum trim
- 7k tongue jack
- Stabilizer jacks on all (4) corners – scissor jacks on the front and swing downs on the rear
