OI-3P

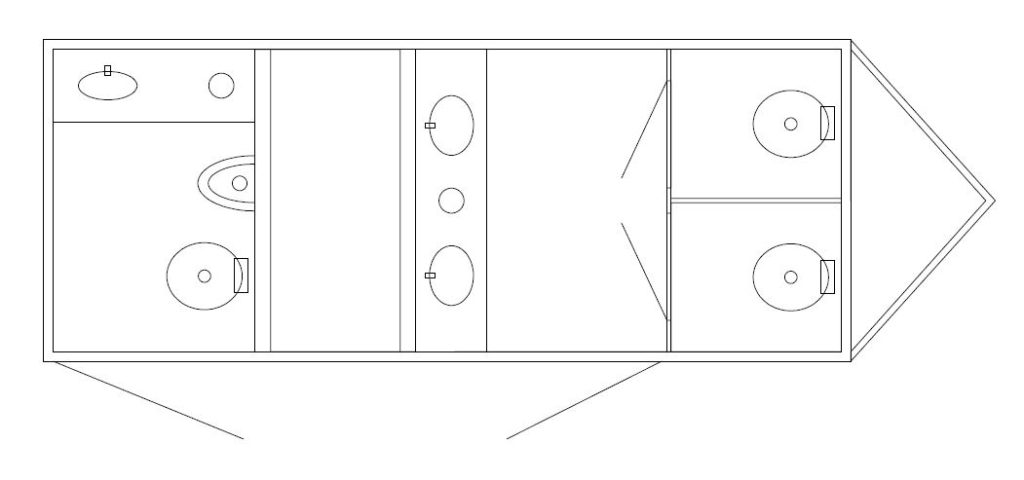

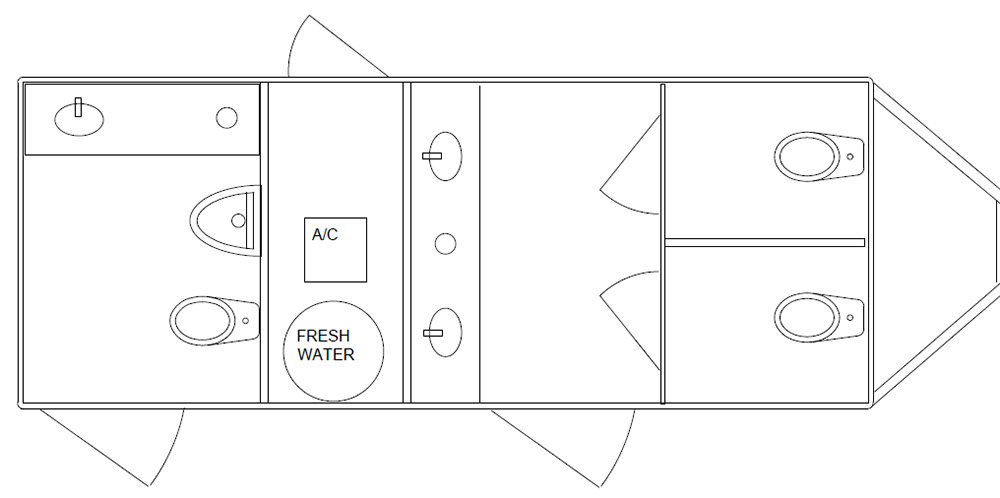

OI-3P Floorplan
Box Width76.5˝
Overall Width98.5˝
Box Length192˝
Overall Length240˝
Interior Height82.5˝
Overall Height131.5˝
Curb Weight4820 lbs.
Tongue Weight840 lbs.
Fresh Tank Capacity105 gal.
Holding Tank Capacity530 gal.

Interior Standard Features

  • Smooth durable fiberglass interior on composite backer (no wood)
  • 12 Volt LED lighting – (2) lights men’s (4) lights women’s
  • Lockable base cabinets
  • Solid surface countertops with molded sinks
  • Waste basket cut outs and waste baskets
  • Self closing faucets
  • Soap dispensers (shipped loose)
  • Paper towel dispenser
  • Toilet paper holders
  • Ceramic China pedal flush toilets
  • Waterless urinal (men’s restroom only)
  • Sanitary Napkin receptacles (women’s restrooms only)
  • Shatterproof mirrors
  • Heavy duty door closers
  • 1 Piece transit grade flooring
  • Climate control sensor inside restroom

Exterior Standard Features

  • Large 32″ heavy duty entrance doors
  • Occupancy lighting
  • 1 Piece roof
  • Smooth durable fiberglass exterior on composite backer (no wood)
  • Porch lights w/ switch at all entry doors
  • Fold down steps with swing-out grab handles
  • 3″ quick connect waste tank access valve
  • LED waste tank indicator
  • 3/8″ HDPE waste tanks
  • 1″ wash out plug
  • City water connection
  • 30 amp marine-style power cord
  • Roof mounted Air Conditioner w/ heat strip
  • Climate control center mounted in control room
  • Insulated walls and ceiling
  • Torsion axle
  • Aluminum wheels
  • E-rated trailer specific tires
  • Full license plate frame with light
  • Fresh water fill/diverter (either hydrates the unit or fills the fresh tank)
  • Courtesy light above Control Room door
  • E coated frame
  • Powder coated aluminum trim
  • 7k tongue jack
  • Stabilizer jacks on all (4) corners – scissor jacks on the front and swing downs on the rear

*All information contained herein including, but not limited to, floorplan offerings, specifications, standards, and options are based on the latest information at the time of publishing. This information is subject to change at any time, without notice or obligation.
